Overview of SmartWave Plus

Download

【Technical background】
Recently, the reactive power compensation usually chooses shunt capacitor bank which has many characteristics such as simple structure, easy control, big capacity, easy extending and so on. However the shunt capacitor bank can’t eliminate harmonic efficiently and this may cause the series and parallel resonance with the system impedance. In the application field of need large amount of reactive power compensation and harmonic elimination, shunt capacitor bank and APF will be generally parallel installed and controlled respectively, which may change the load’s equivalent harmonic impedance and cause the current coupling problem. So, it needs special design to keep system stable running.

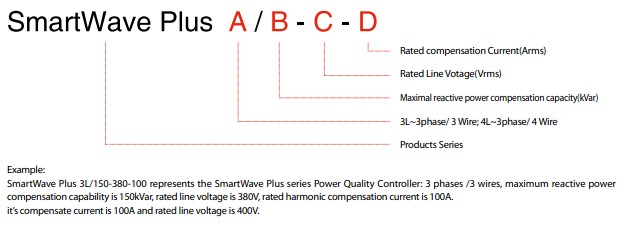

• 【Capacity selection】



• 【Product principle】

  SmartWave Plus Power Quality General Controller combines capacitor bank, passive power filter and APF for parallel connection and control them as a complete system. SmartWave Plus can compensate large reactive power, eliminate the power harmonic with avoiding the resonance between capacitor bank and system impedance. It can also enhance the equipment’s stability and reduce the custom cost with only one control module.

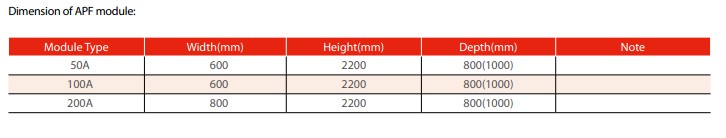

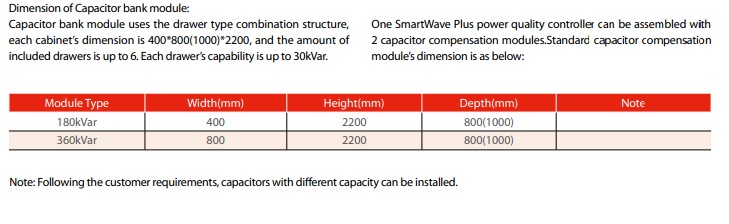

• 【Structure】

  SmartWave Plus is module designed, includes APF module, capacitor bank module, passive filters module and SmartWave control module, these modules can be assembled freely if need.
